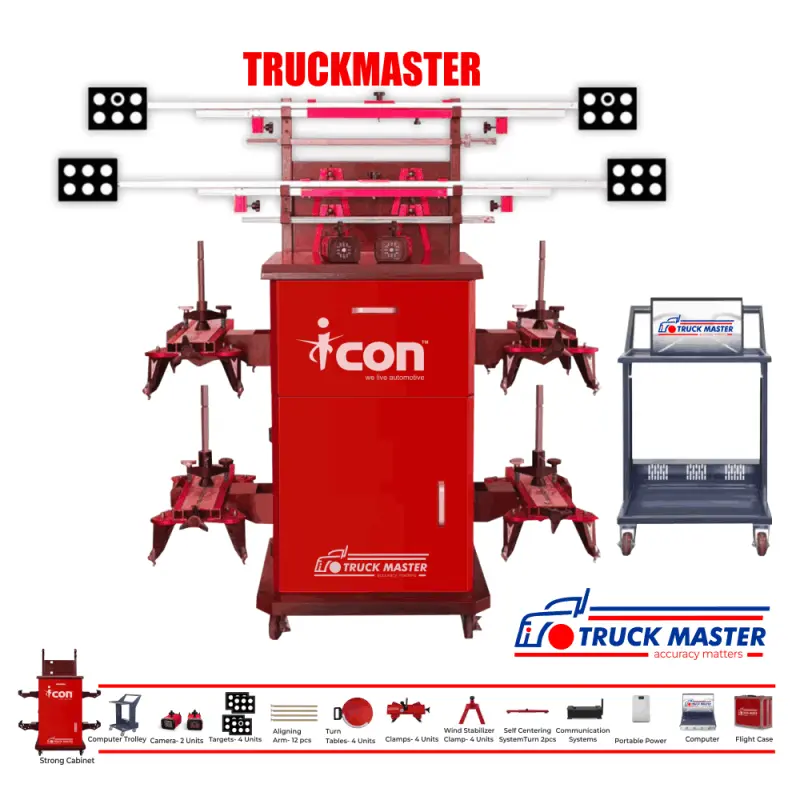

Truck Wheel Alignment Machine
$14
Features:
High-Definition Cameras
User-Friendly Software
Comprehensive Vehicle Database.
Durable Construction
Global Compliance
Specifications:
Total Toe Measurement Range: ±20° (±4')
Single Toe Measurement Range: ±10° (±2')
Camber Measurement Range: ±10° (±2')
Caster Measurement Range: ±20° (±2')
Kingpin Inclination (KPI/SAI): ±23° (±2')
Thrust Angle Measurement Range: ±5° (±2')
Setback Measurement Range: ±5° (±2')
Maximum Steering Angle: ±65° (±30')
IA700 Truck Wheel Balancer
$14
• Multifunction display
• Fully automatic cycle with braking by electro- pneumatic brake
• Intelligent and automatic system to measure diameter and distance with the ICON Gauge
• ALU S balancing mode (adhesive weights on the internal rim planes) with specific counterweight position indicator (position repeater)
• SPLIT program to hide weights behind spokes
• Machine complete with a built-in pneumatic lift (capacity 250 kg) for an easier wheel lifting and a
more precise centering on the shaft
• 4-operator program (4 different operators can use the machine on 4 different vehicles contemporaneously)
Specifications:
Rim Diameter : 10"-30" inch
Max Wheel Weight : 65 kg
Max Wheel Diameter : 51" inch (1300mm)
Rim Width : 1.5"-20" inch
Precision : +/- 1g
Motor Power : 0.8 kW
Power Supply : 230 V 1/3 Phase 50/60 Hz
Rotation Per Minute : 90 RPM Truck - 150 RPM Car
Balancing Time : 8s
Split and hidden weight solution : YES
Noise Level : < 70db
Net Weight :250 kg

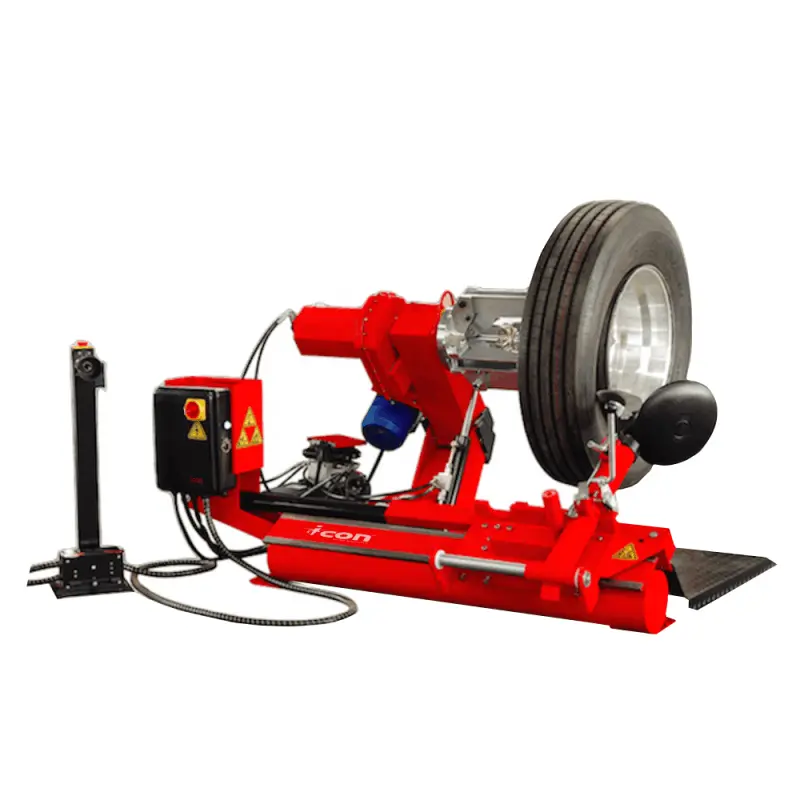

TTCX 1500 Truck
Tyre Changer
$14
• Support both tubeless and tube type wheels
• zero accidental damage to the rims ensured by protectors on the jaws
• Easy-to-use two-way tool for bead-breaking, mounting and de-mounting.
• Positioning of wheel and tool within a wide accurate adjustment range
• self-centring hydraulic chuck infinite range
• Bead breaker roll and mounting/demounting tool fitted on swing arm
Specifications:
Rim Diameter : 14"- 26" inch
Max Tyre Weight : 500kg
Maximum Wheel Width : 780mm
Maximum Wheel Diameter : 1600mm
Hydraulic Pump Motor : 1.5kw 220/380 V-1/3P Optional
Gearbox Motor : 1.8kw. 220/380V- 1/3P
Compressed Air Supply : 8-10 Bar
Bead Breaker Force : 2500kg
Operation Control Voltage : 24V
Machine Weight Approx :570kg
Machine Dimension (mm) : 2000 X 2500 mm ( w x l )
Power Supply : 230/400 V /60 Hz 1P/3P Optional

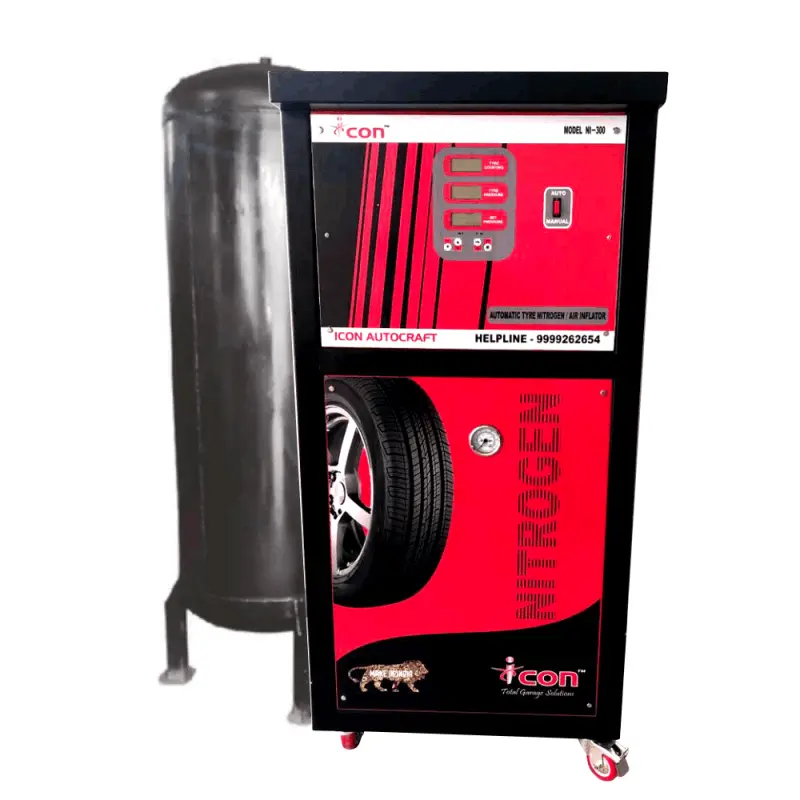

NI 300 PLUS Nitrogen Inflator
$14
Specifications:
Nitrogen Tank Capacity : 85 Ltrs
Max Compressed Air Pressure :150 PSI / 10KG
Output Nitrogen Pressure: 50PSI / 3KG
Nitrogen Producing Speed: 60 Ltrs per Min
Nitrogen Purity: 92% to 95%
Accuracy: ± 1 PSI
