Looking to Set Up Tyre Shop

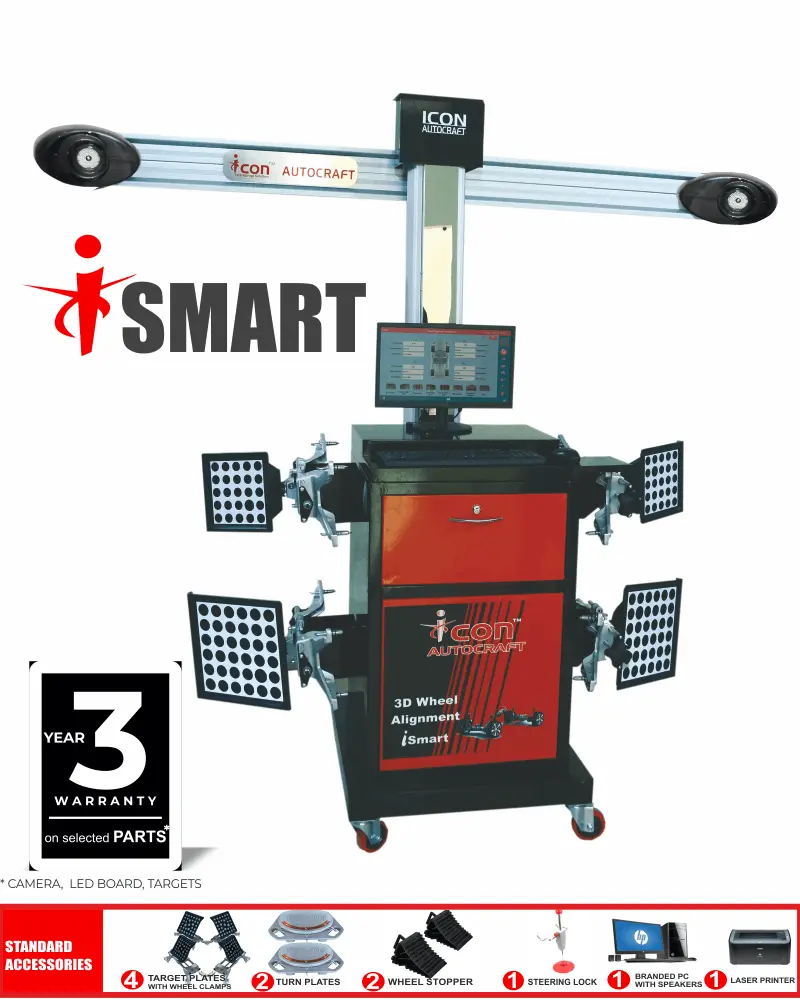

Both vehicle axles are monitored using four measurement target plates. The wheeled unit features a camera arm with vertical movement ability, along with hardware and software essential for seamless. 3D wheel alignment. It is equipped with standard accessories.

- The camera movement kit allows operation from pit level     up to over 2 meters, controlled automatically or via               remote.

- No need for periodic calibration.

- High-precision 3D wheel alignment.

- Parking assistant feature.

- Voice assistant integration.

- Unique high-resolution targets.

- High-resolution cameras for enhanced accuracy.

- User-friendly software with quick alignment capabilities.

- Standard wheel clamps compatible with 10” to 24”               wheels.

- Automatic steering angle measurement without the need     for costly electronic turntables.

- Job operation and customer data bank to store and               retrieve allcustomer information.

- Mounting kit included for clamps and targets.

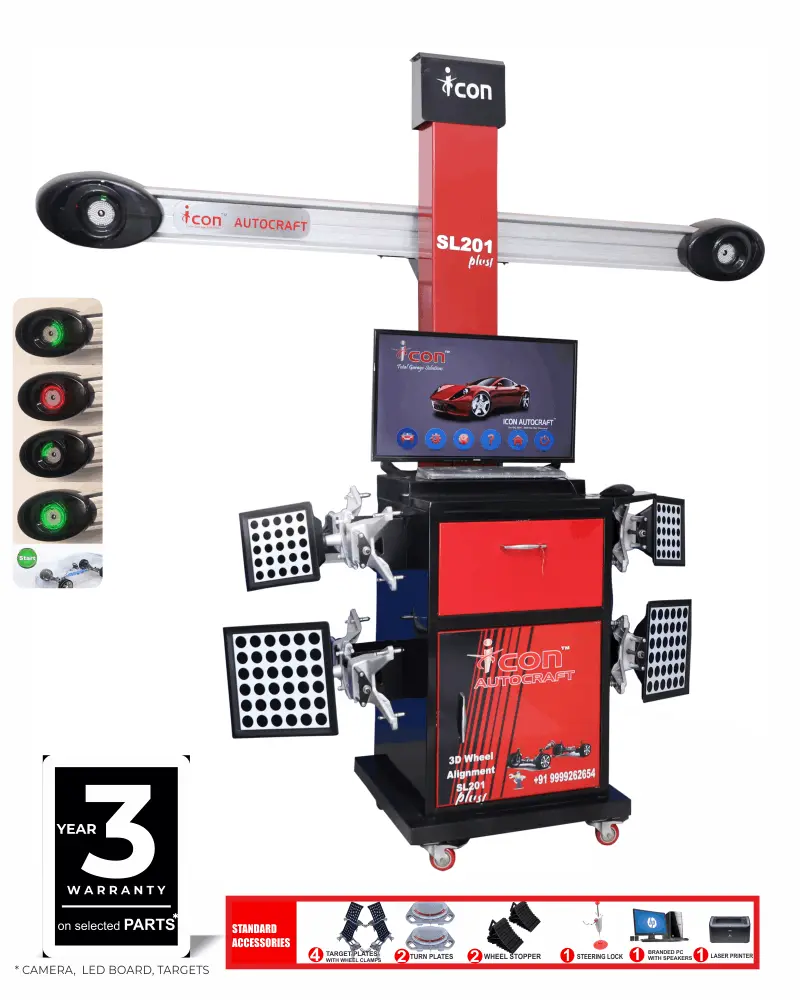

Both vehicle axles are monitored using four measurement target plates. The wheeled unit features a camera arm with vertical movement ability, along with hardware and software essential for seamless. 3D wheel alignment. It is equipped with standard accessories.

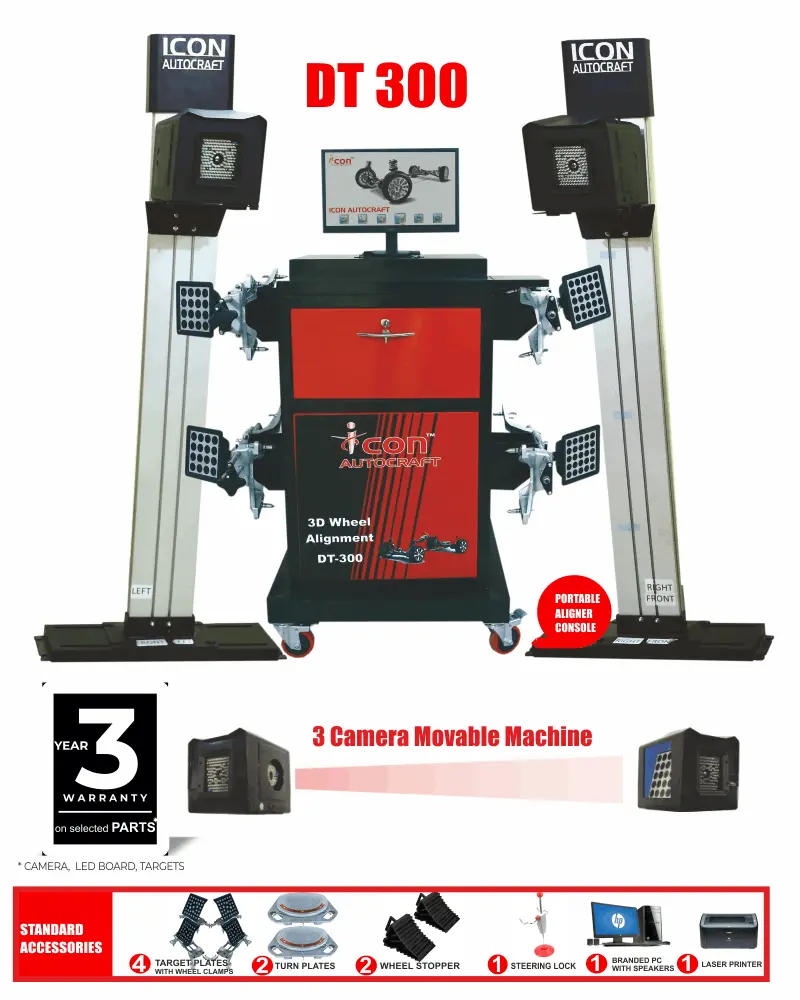

Three camera with 5 targets movable machine

High precision wheel alignment 3D.

Low-cost maintenance with lower failure rate.

Parking Assistant.

Voice Assistant.

Unique High resolution targets.

High resolution camera

User friendly software and quick alignment

Standard 10” to 24” wheel clamps

Automatic steering angle Measurement

without expensive electronic turn tables

Job operation customer data bank to recall

and memorize all customer data

Mounting kit for clamps and targets.

Cabinet

Both Vehicle Axles are controlled

with four measuring Target Plates

Having Sensors &Wireless Infra-red

Transmission.

Wheeled Unit Contains Hardware

& Software Essential for Smooth

3D Wheel Alignment.

This Comes With Standard Accessories.

Pre Alignment Inspection,

Tyre Condition, Auto Data,

Cabinet, Camber Jack Function,

Steering Alignment,

Graphics Assistance,

Can Work in Two Targets,

Android App,

Quick Data Update

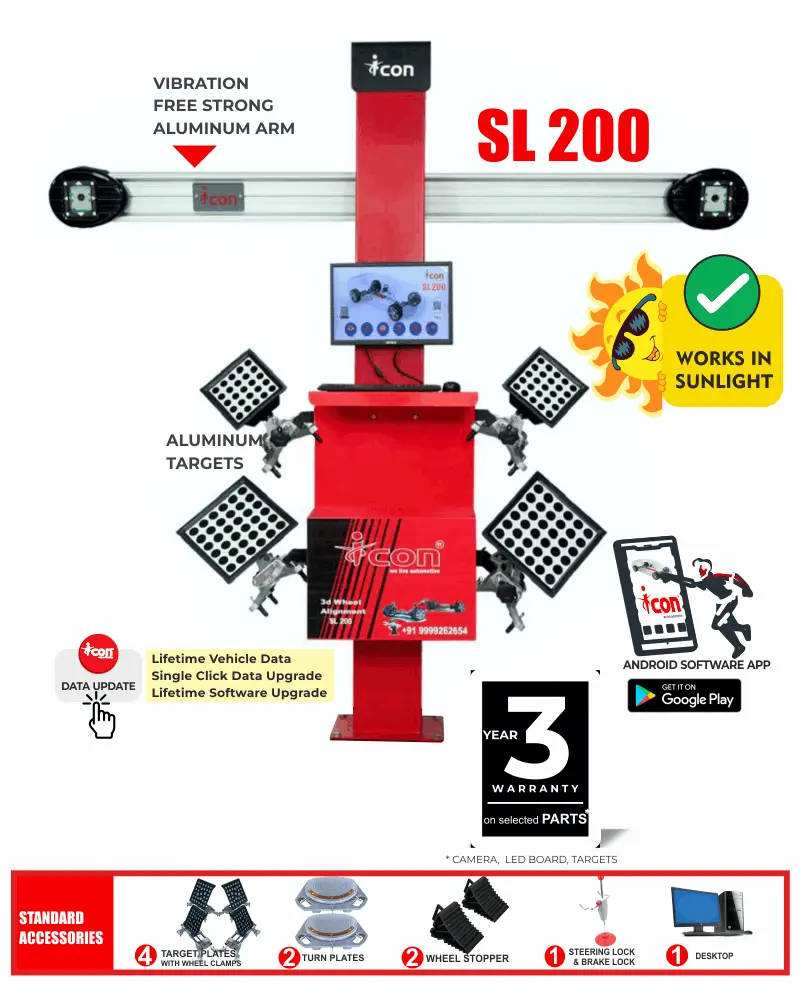

Both Vehicle Axles are controlled with four

measuring Target Plates, Fixed Unit Contains

Hardware & Software Essential for Smooth

3D Wheel Alignment.

This Comes With Standard Accessories.

Features :

High precision wheel alignment 3D.

No electronic components and sensor.

No periodic calibration with one.

Low-cost maintenance with lower failure rate.

Unique High resolution targets.

High resolution camera

140 + LED Count

User friendly software and quick alignment

Standard 10” to 24” wheel clamps

Automatic steering angle Measurement

without expensive electronic turn tables

Job operation customer data bank to recall

and memorize all customer data

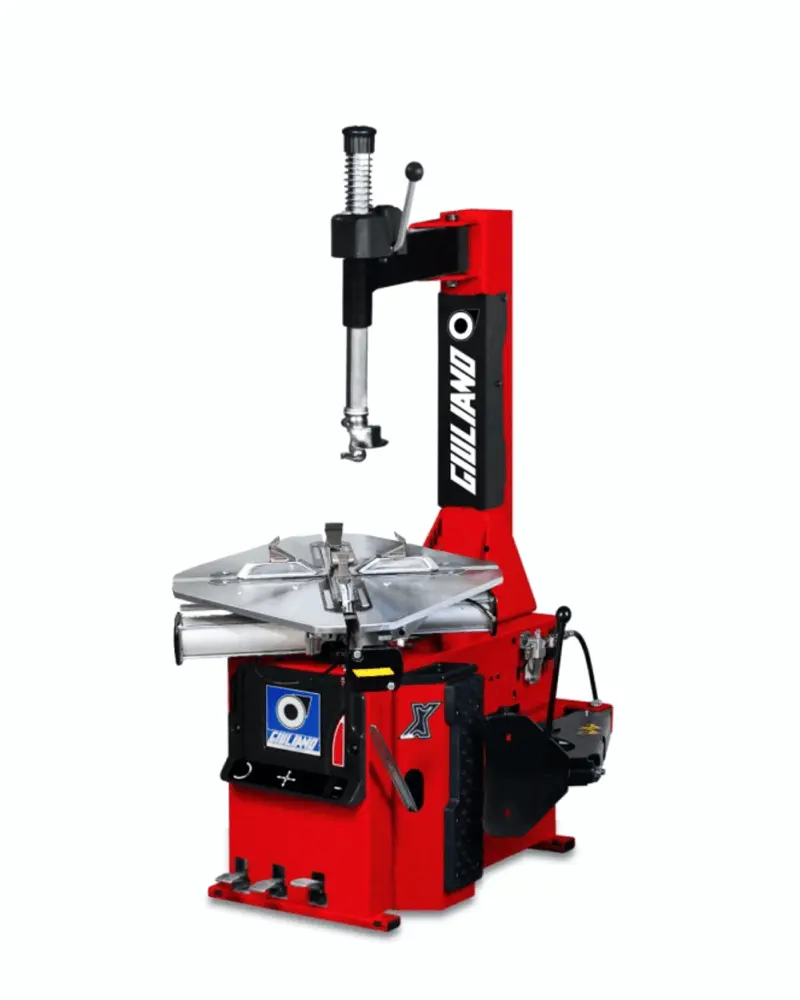

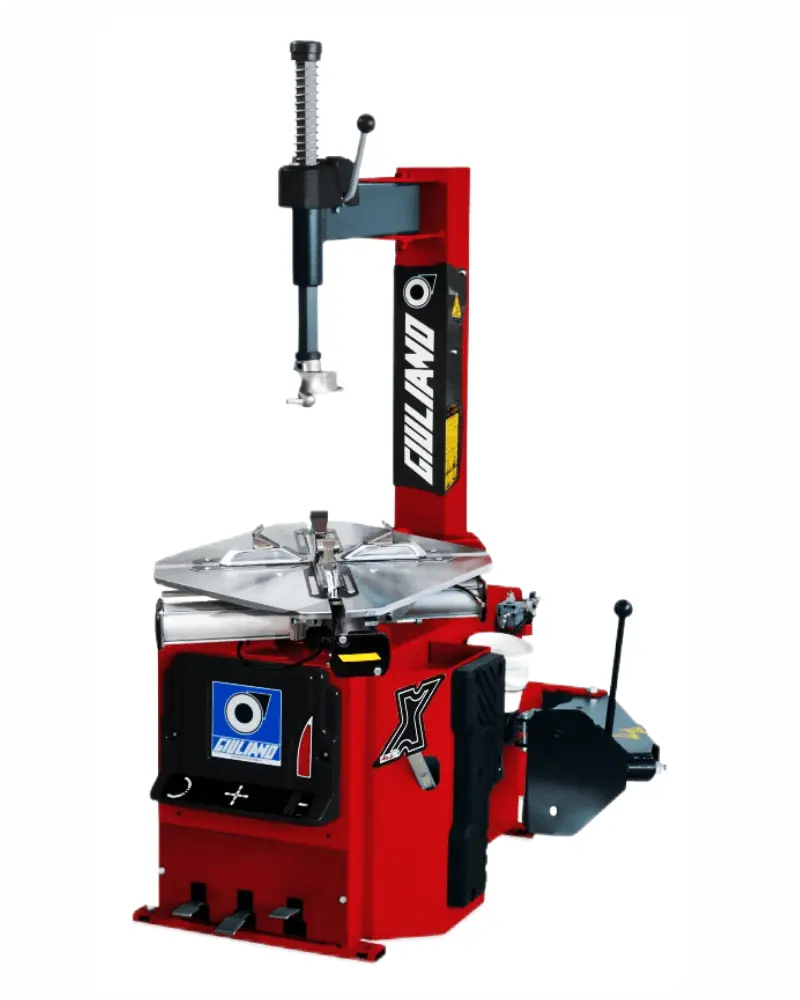

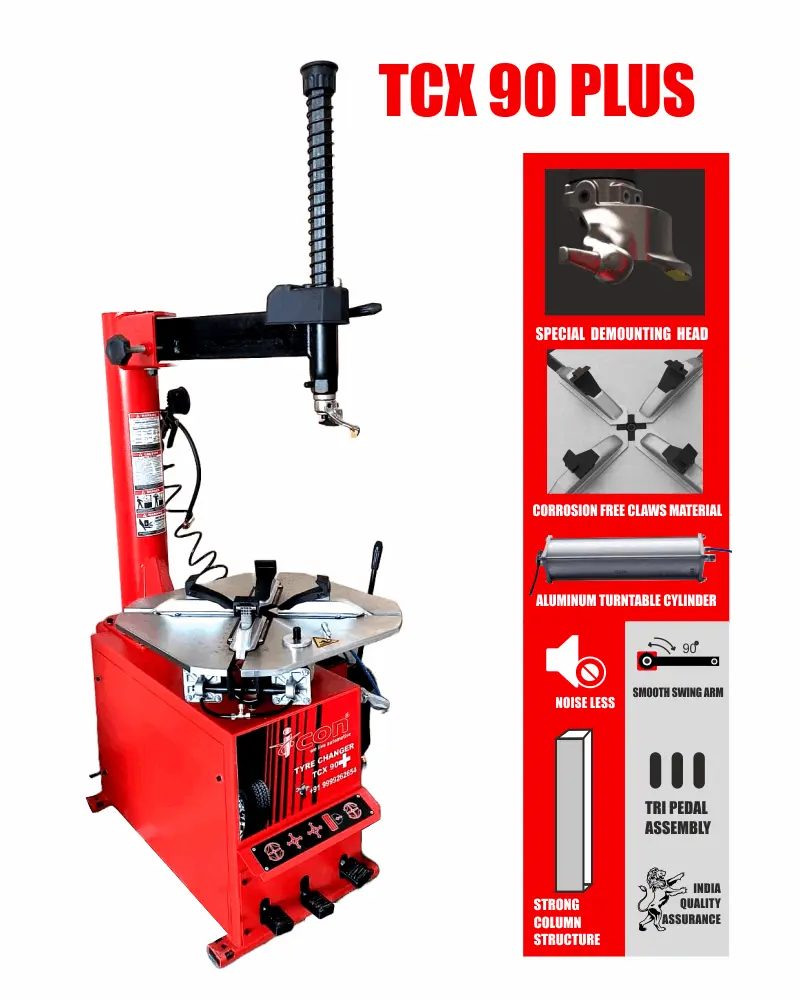

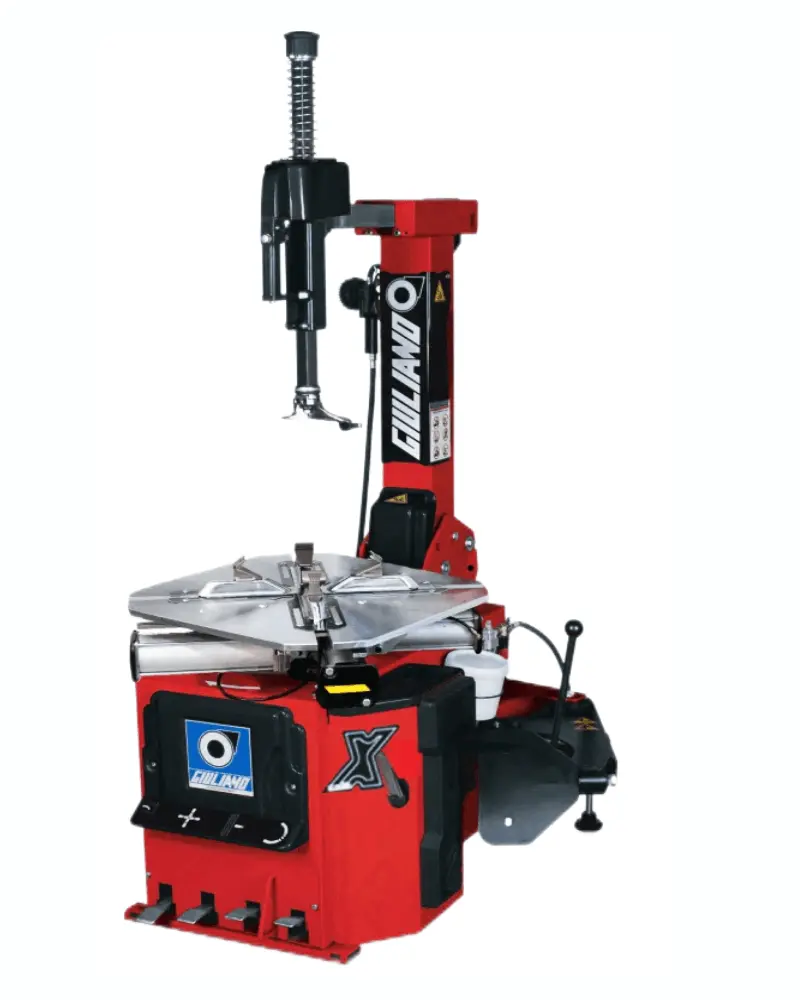

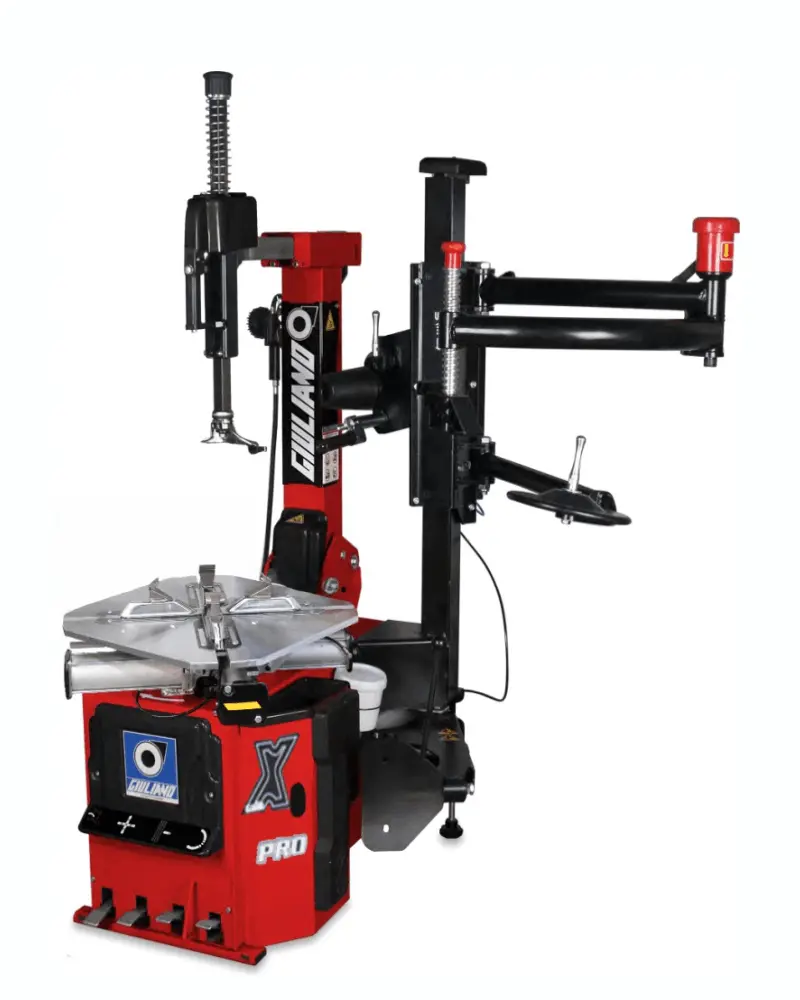

SEMI AUTOMATIC S WING ARM TYRE CHANGER

TYRE CHANGER WITH P OWER X

SEMI AUTOMATIC S WING ARM TYRE CHANGER

TYRE CHANGER WITH P OWER X

SEMI AUTOMATIC S WING ARM TYRE CHANGER

TYRE CHANGER WITH P OWER X

Robust vertical tower swinging horizontal arm with Ø41mm operating arm

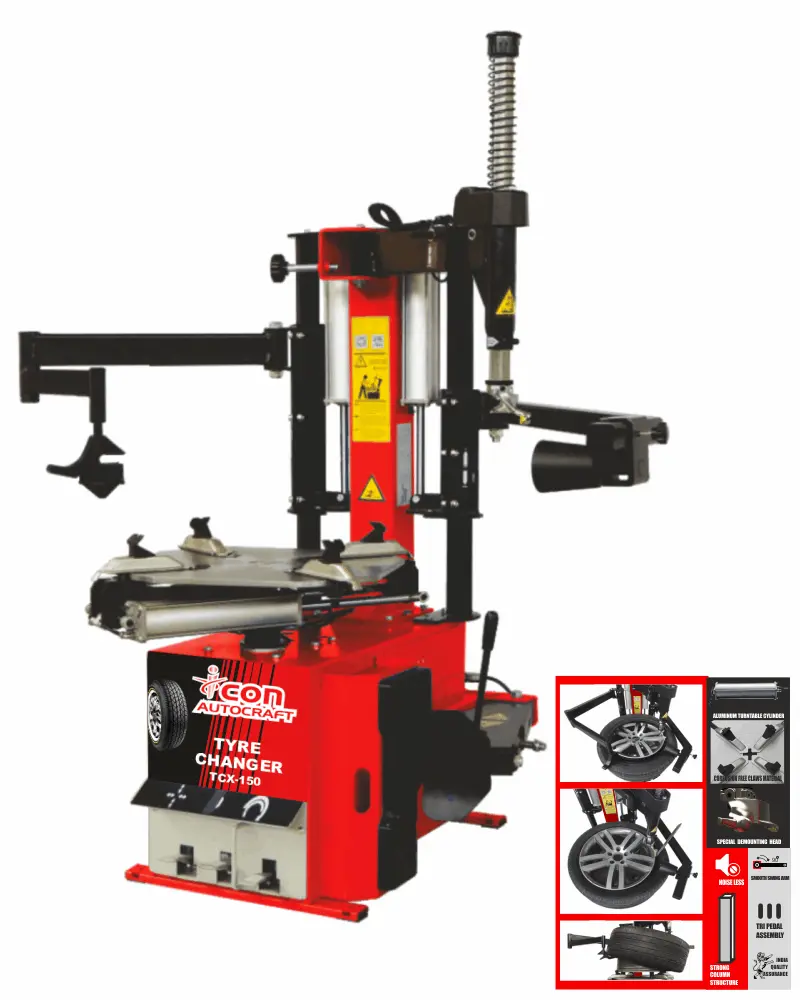

SEMI AUTOMATIC S WING ARM TYRE CHANGER

TYRE CHANGER WITH POWER X

• Two auxiliary arms having independent control for easy to install tyre over wheel  with flexibility of controlling tyre shoulder height

• Right auxiliary arm uniquely designed to avoid scratching on wheel and also keep wheel tyre distance uniform

• Left auxiliary arm have lifting tyre function

• Easy bead braking of oversized tires ensured with Double acting bead braking cylinders

• Includes oiler, water separator and tyre inflator.

• The mounting arm swings to the side so that the machine can be installed in minimum space

• Firm griping of rims during mounting and de-mounting by Self-centering jaws.

• Multi angle adjustable pressure swivel

Technical Data

Inner Clamping Range : 12"-26" inch

Outer Clamping Range : 10"-24" inch

Power Supply : 220 V

                                               1 Phase 50/60 Hz

Compressed Air Supply : 8-10 Bar

Rotate Speed : 6-12 RPM

Bead Breaker

Power Per Cylinder : 2800kg

Dynamic / Static Balance of Tyres and Various Aluminum Alloy Balance Modes and Motorcycle Tyre Balance Modes.

It Allows Users to Edit the Most Suitable Balance

Operation Habit Settings According to their needs, Which Can Greatly Improve Work Efficiency. It Has the Function of Protective Cover Control, Definition of Unit Systems,, Selection of Minimum Unbalance and so on. With a Variety of Innovative Tyre Data Input Method, Convenient and Fast Use of Tyre Rotation Can Also Achieve Data Adjustment and Input. Self Calibration is Simple and Easy to Operate,

and Quickly Restore its Accuracy for Machines that Are Not in Use for a Long Time.

Technical Data

Rim Diameter : 10"-24" inch

Max Wheel Weight : 65 kg

Max Wheel Diameter : 1000mm

Rim Width : 1.5"-20" inch

Precision : +/- 1g

Motor Power : 0.25kW

Power Supply : 230 V Single Phase

Rotation Per Minute : 200 RPM

Balancing Time : 10s

Second Time Mounting Test : </= 5g

Noise Level : < 70db

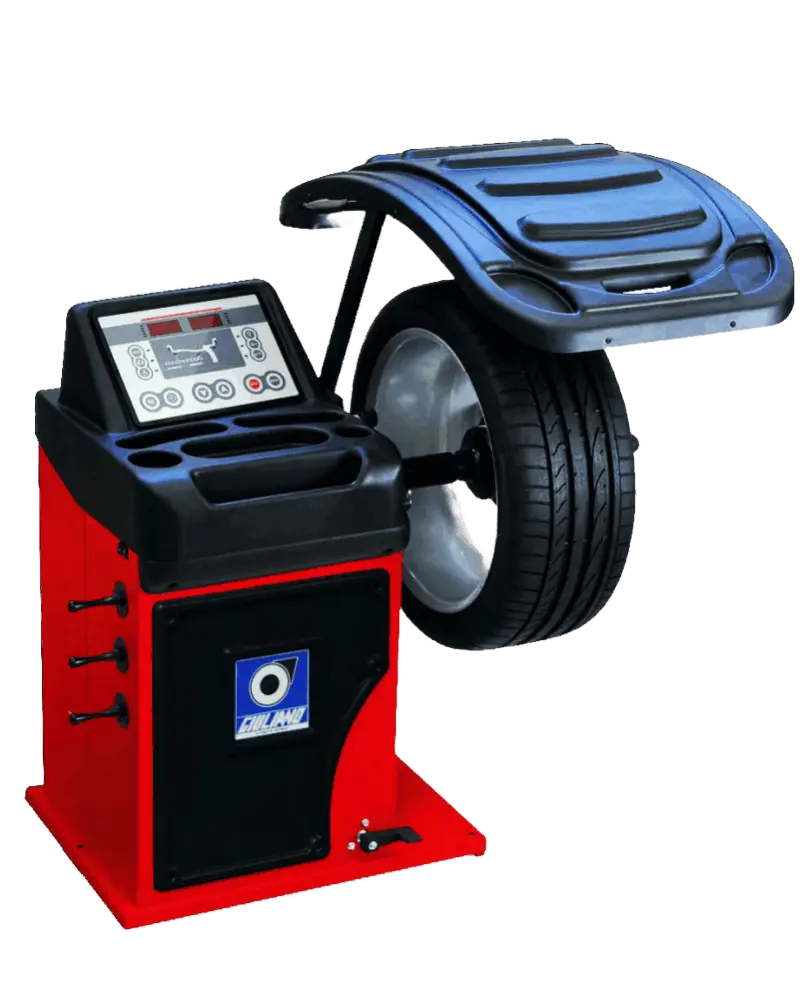

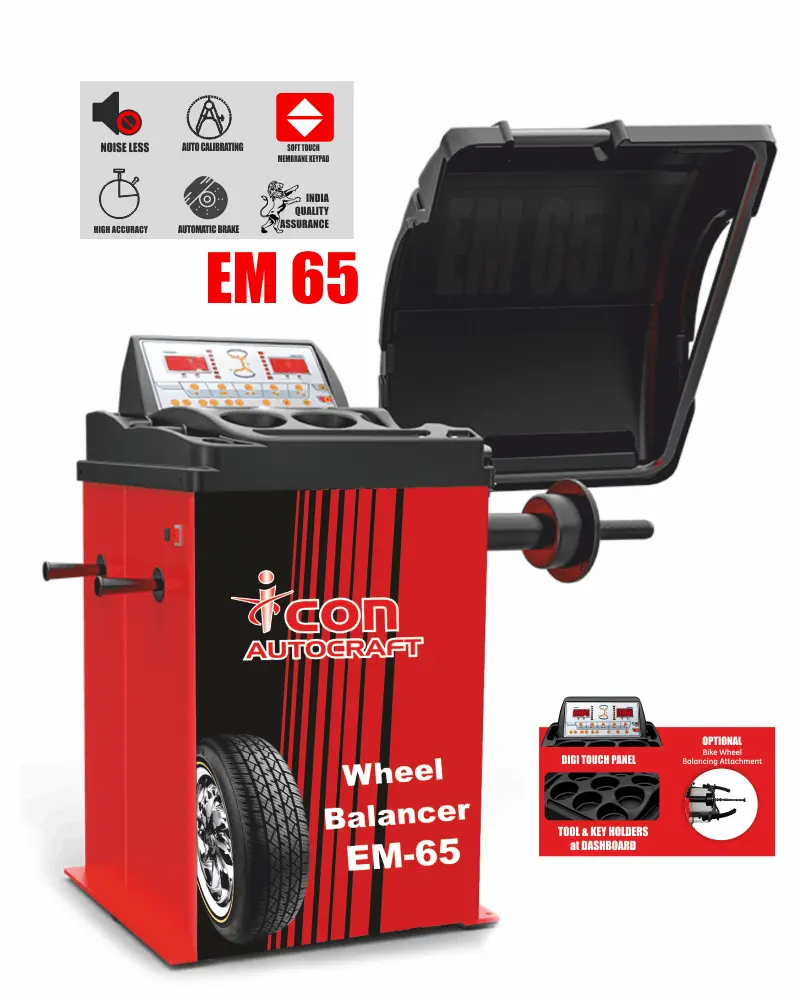

DIGITAL ELECTRONIC WHEEL-BALANCER WITH LED DISPLAY

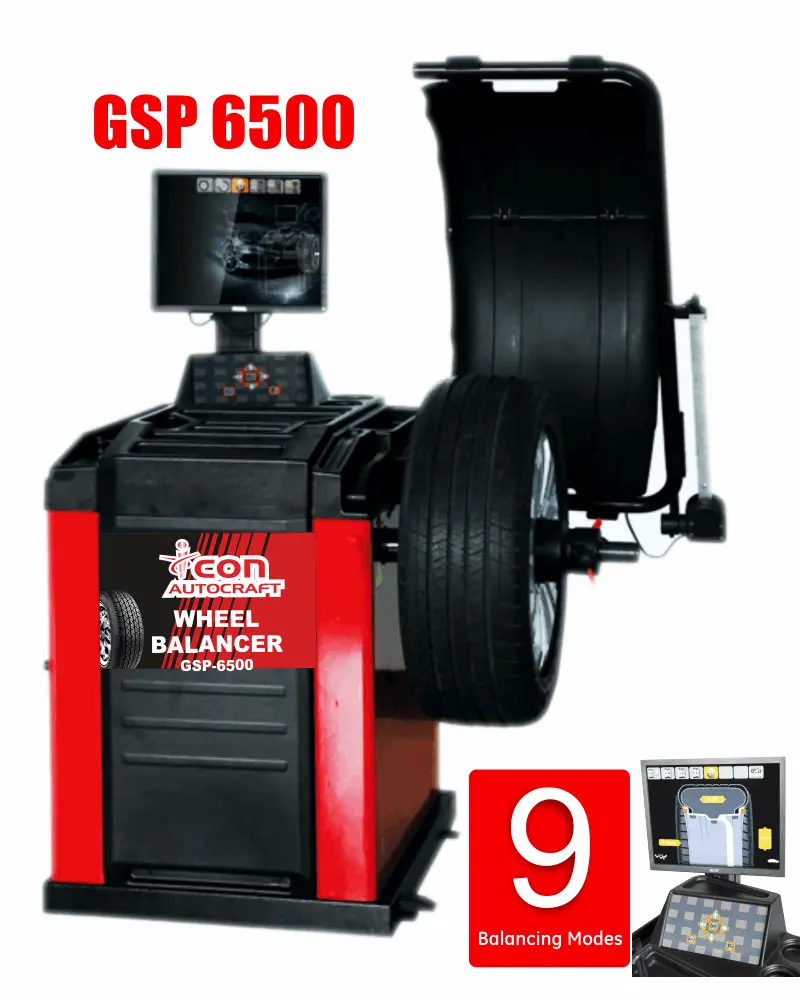

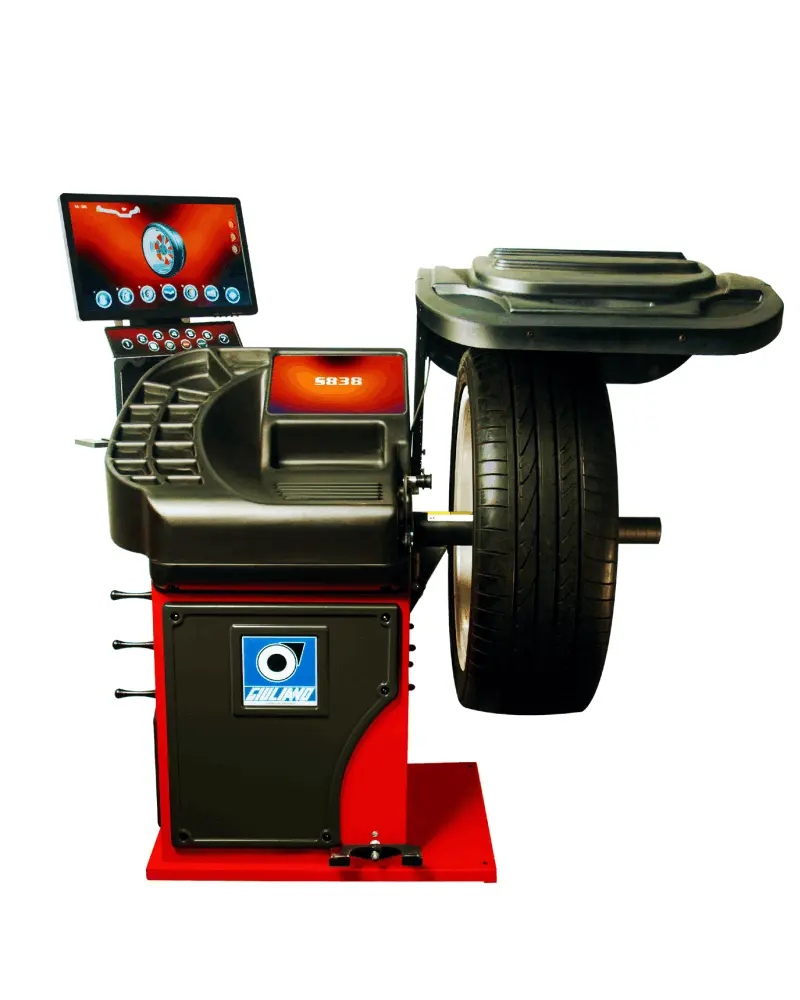

DIGITAL ELECTRONIC 2-D WHEEL BALANCER WITH VIDEO DISPLAY, AUTOMATIC LOCKING, LASER LINE AND LED LIGHT
