Single Post Lift
$14
A unique, space-saving lift system designed for
versatility, allowing use as a single unit or in
combinations of two or four lifts.
Ideal for lifting cars and SUVs.
SPECIFICATIONS :
- Single column, Motorized Hydro Electrical
- Power Pack / Electric Driven with
- single phase 220V.
- Capacity : 1550 kgs
- Lifting Height : 700 mm to 900mm
- Over All Width : 900 mm
- Power : 1 Phase, 220V

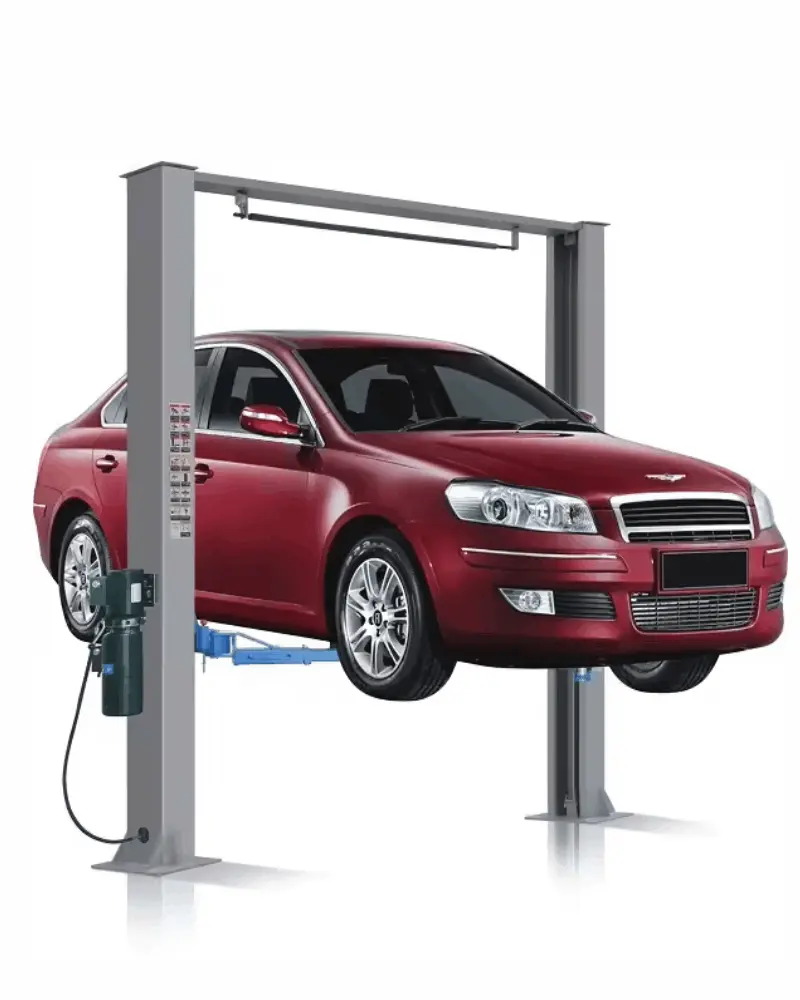

Two Post Lift Clear Floor Type
$68
Padded shut-off bar to safeguard against damage from over-lifting a vehicle.
Dependable self-setting locking mechanism with an easily accessible lock handle.
Symmetric 2-post lift featuring an asymmetric arm design, offering more pickup points than ever before.
Two heavy-duty hydraulic cylinders engineered for minimal maintenance, reducing downtime.
Specifications
- Load Capacity: 4082 kg
- Total Height: 2819 mm
- Maximum Lifting Height: 2006 mm
- Lift Cycle Time: 45 seconds
- Overall Width:3518 mm
- Width Between Columns: 2819 mm
- Drive-Through Width:2565 mm
- Power Requirement: 3-Phase, 380 V, 50 Hz
- Motor Capacity: 2 HP
Product code:
Product code:

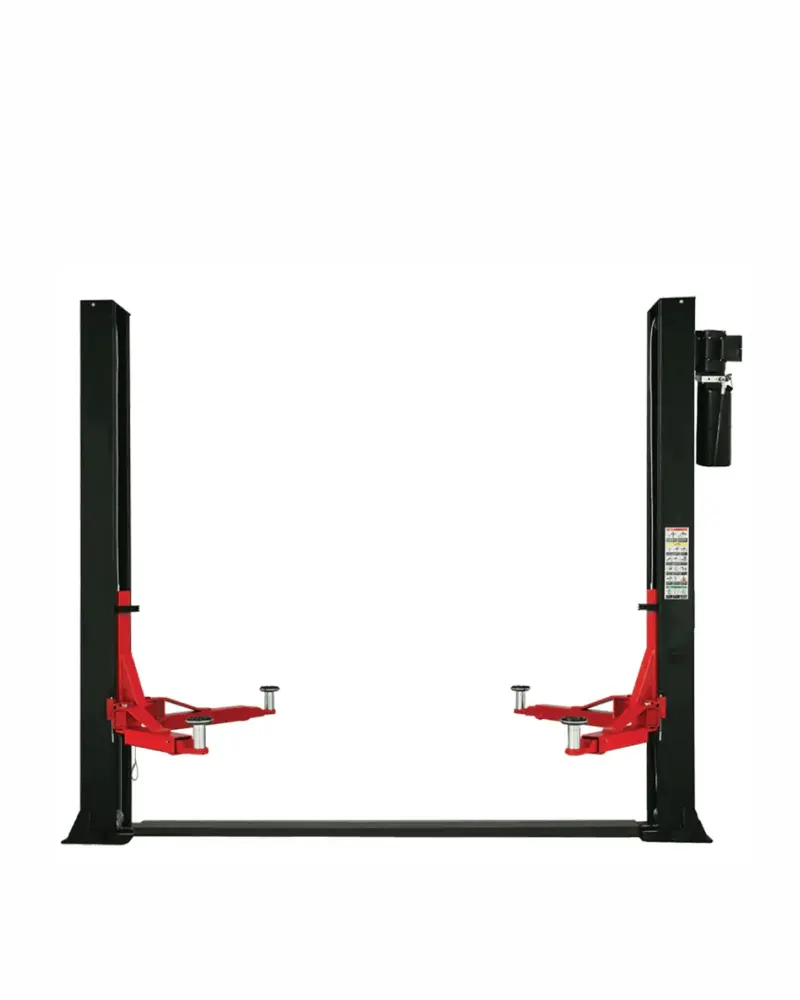

Two Post Lift Base Type
Padded shut-off bar to safeguard against damage from over-lifting a vehicle.
Dependable self-setting locking mechanism with an easily accessible lock handle.
Symmetric 2-post lift featuring an asymmetric arm design, offering more pickup points than ever before.
Two heavy-duty hydraulic cylinders engineered for minimal maintenance, reducing downtime.
Spring-operated arm restraints that automatically disengage at floor level.
Specifications
- Capacity: 4082 kg
- Overall Height: 3642 mm
- Shut-Off Height: 3499 mm
- Front Arm Reach: 711 mm – 1054 mm
- Rear Arm Reach: 800 mm – 1137 mm
- Overall Width (Over Floor): 3353 mm
- Inside Column Width: 2769 mm
- Drive-Through Clearance: 2515 mm
- Power Supply: 3-Phase
- Motor Power: 2.2 kW

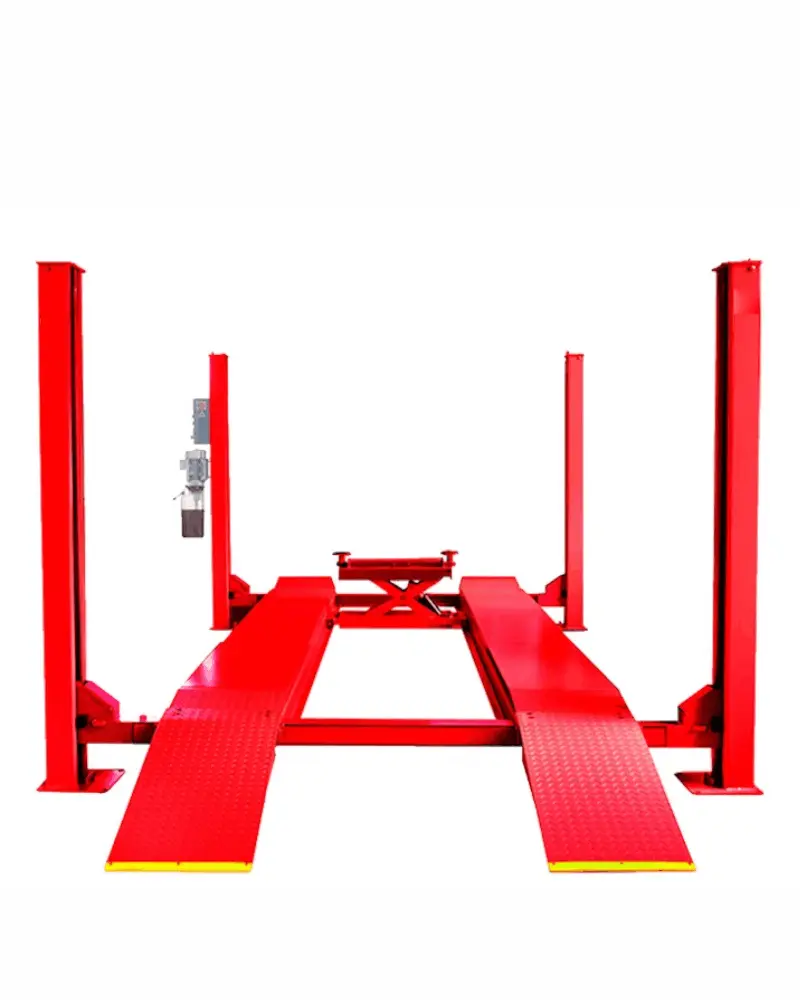

Four Post Lift
$136
Specifications :
- Lifting Capacity : 4000kgs
- Lifting height: 1500mm
- Second lifting height: 450mm
- Platform length: 4200mm/4500mm
- Motor power: 2.2kw
- Power Supply: 110v/220v/380v/400v
- Rated hydraulic pressure: 18Mpa
- Unlocking method: Manual unlocking

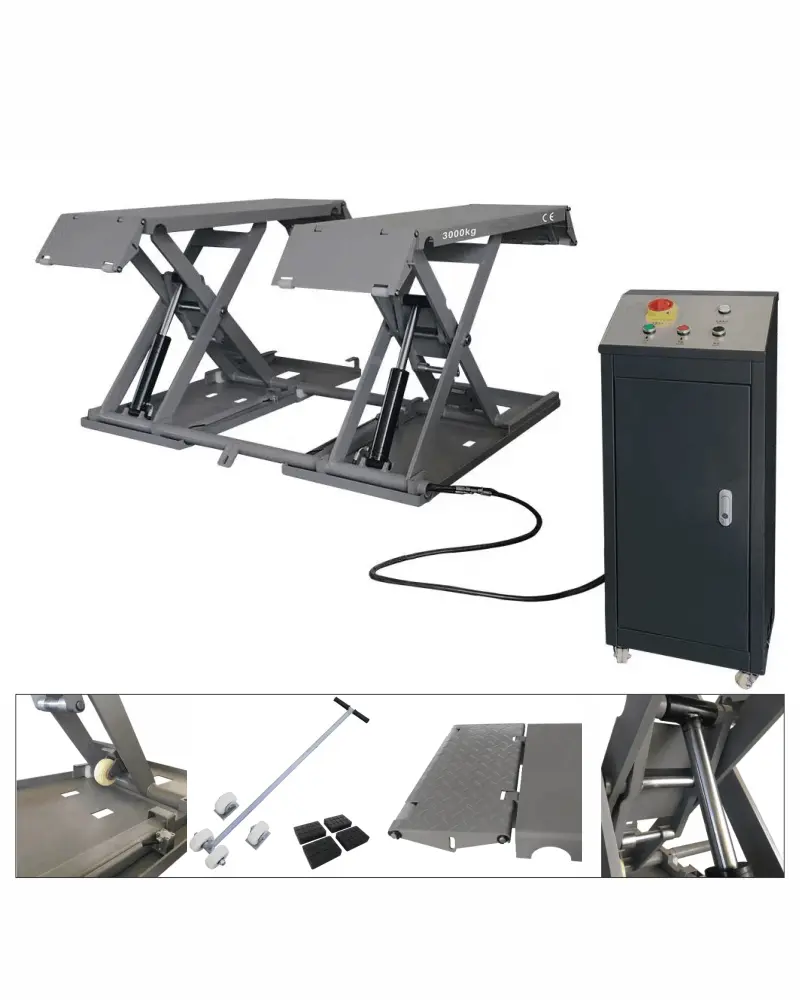

Mid Rise Scissor Lift
$162
Mid- Rise scissor lift for small cars to do four-wheel positioning and vehicle testing and maintenance and repair, the main hydraulic components of the machine selection of high-quatity imported components assembled, using double teeth, hydraulic, electrical
appliances to protect, so the lift will be safe, reliable and smooth operation.
Specifications
- Lifting capacity : 3000KG (6614LBS)
- Lifting height : 1000MM (39.4")
- Min height : 110MM(4.3")
- Lifting time : 30S
- Overall length of platform : 1400MM-1940MM (55.1-76.4")
- width of platform : 520MM (20.5")
- Overall width of platform : 1840MM (72.4")
- Width between platform : 800MM (31.5")
- Motor power : 2.2KW-380V/220V
- Air Supply : 0.6-0.8MPA

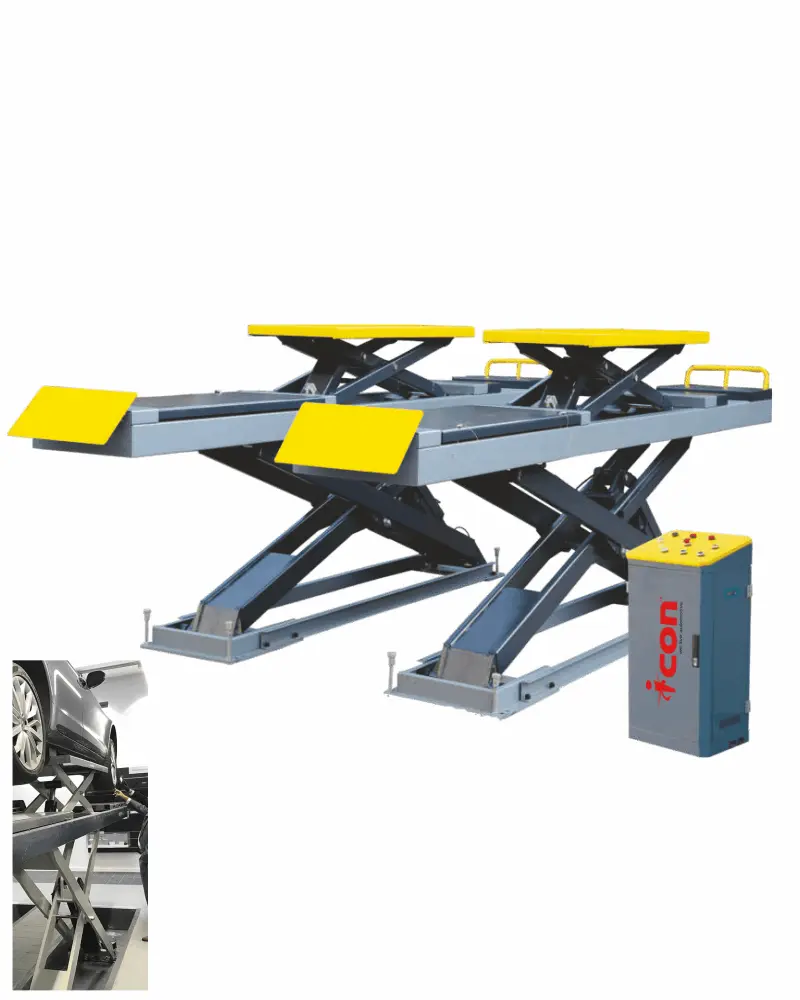

Wheel Alignment Scissor Lift
$134
The system features sliding rear plates with low friction, manual locking, and full alignment platforms with adjustable seats for various turntables. It includes safety devices, a hydraulic cylinder with descent speed control, and anti-crushing mechanisms. The user-friendly control panel has push-button controls, "dead man" switches, and an acoustic signal during descent for added safety.
Specifications:
- Load capacity : 4000 Kg
- Platform widths : 610 mm
- Platform lengths : 4500 mm
- Distance between platforms : 820 mm
- Lifting Height : 2160 mm
- Minimum height : 330 mm
- Load capacity- AUXILIARY LIFT : 3500 Kg
- Platform length-AUXILIARY LIFT : 1400 mm
- Platform width-AUXILIRY LIFT : 570 mm
- Lifting height-AUXILIARY LIFT : 450 mm
Motor
5HP, 3 Phase 230-400V 50/60 Hz. 2.2 KW

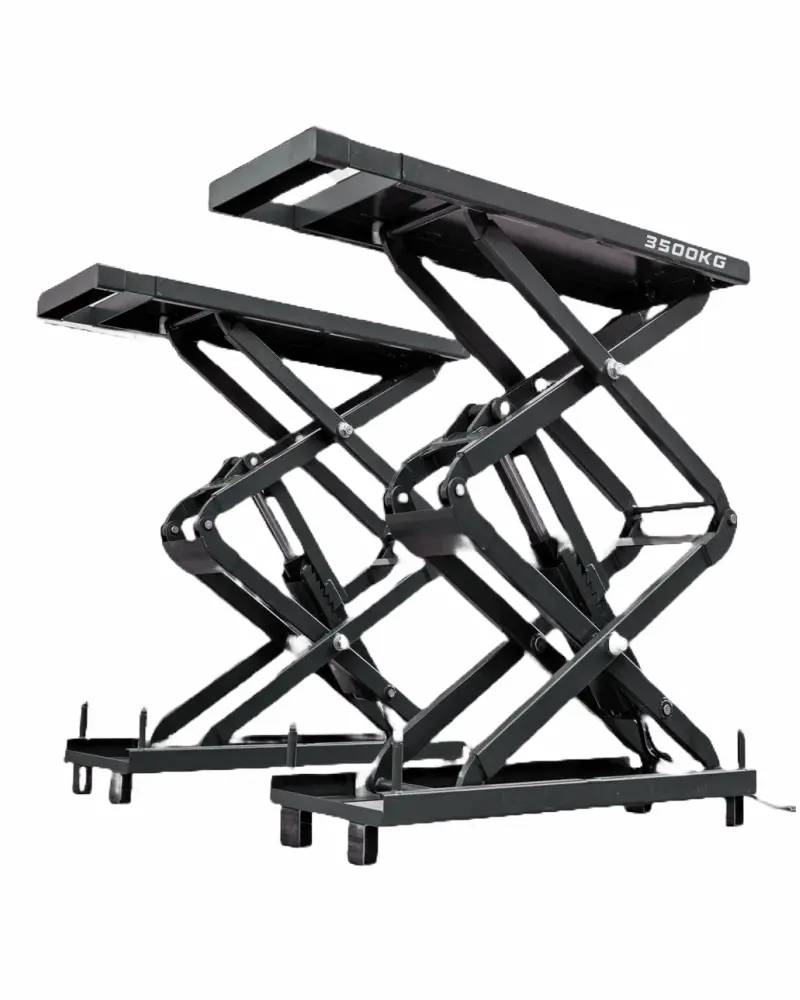

In-ground Small Scissor Car Lift
$190
Double Cylinder Hydraulic Lift Type :
- Lifting Capacity: 3.5T
- Driving Type: Hydraulic
- Driving Motor Number of Mechanical Lift : 2
- Double Cylinder Lift Type: Thin Plate Type
- Shearing Lift Type: Small Shear Type
- Power Supply: 110V/220V
- Lifting Height: 1800mm(70.875")
- Table Length: 1560-1760mm
- Table Width: 550mm(21.625")
- Motor Power: 2.2kw
- Color: Red, Blue, Customizable
- Lifing Time: 50s

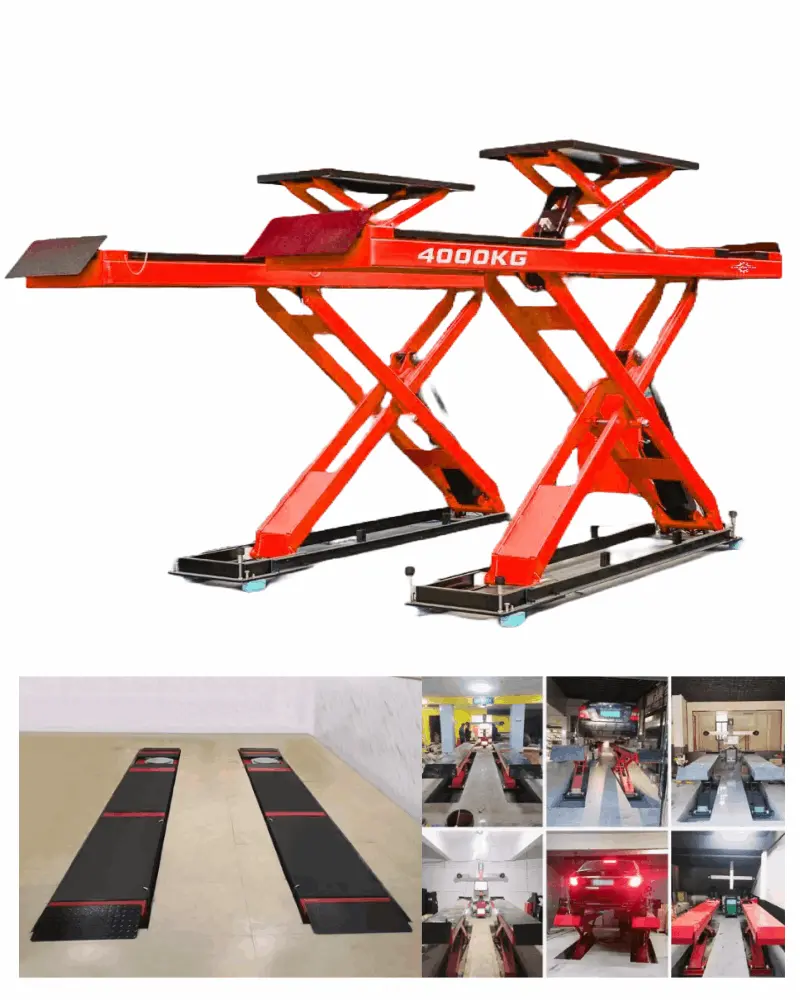

In-ground Large Scissor Car Lift
$52
Specifications :
- Lifting Capacity : 4,000KGS(8,800LBS)
- Lifting Height: 1,750MM+450MM(68.9"+17.7")
- Running Length: 4200-4500mm
- Running Width: 600mm(21.625")
- Motor power: 2.2kw
- Power Supply: 110v/220v/380v
- Lifing Time: 50-60s

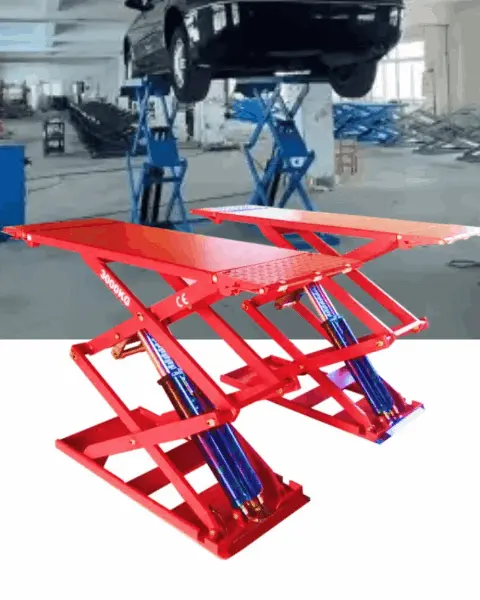

Ultra Thin Small Scissor Car Lift
$190
- Driving Type: Hydraulic
- Shearing Lift Type: Ultrathin Type
- Capacity: 3 Ton
- Design: Scissor
- Power Supply: 110V/220V/380V
- Lifting Height: 1800mm(70.875")
- Warranty: 12 Months
- Table Length: 1550-2070mm
- Table Width: 645mm(25.39")
- Motor Power: 2.2kw
- Color: Red, Blue, Customizable
- Installation: Above Ground
- Lifing Time : 50s

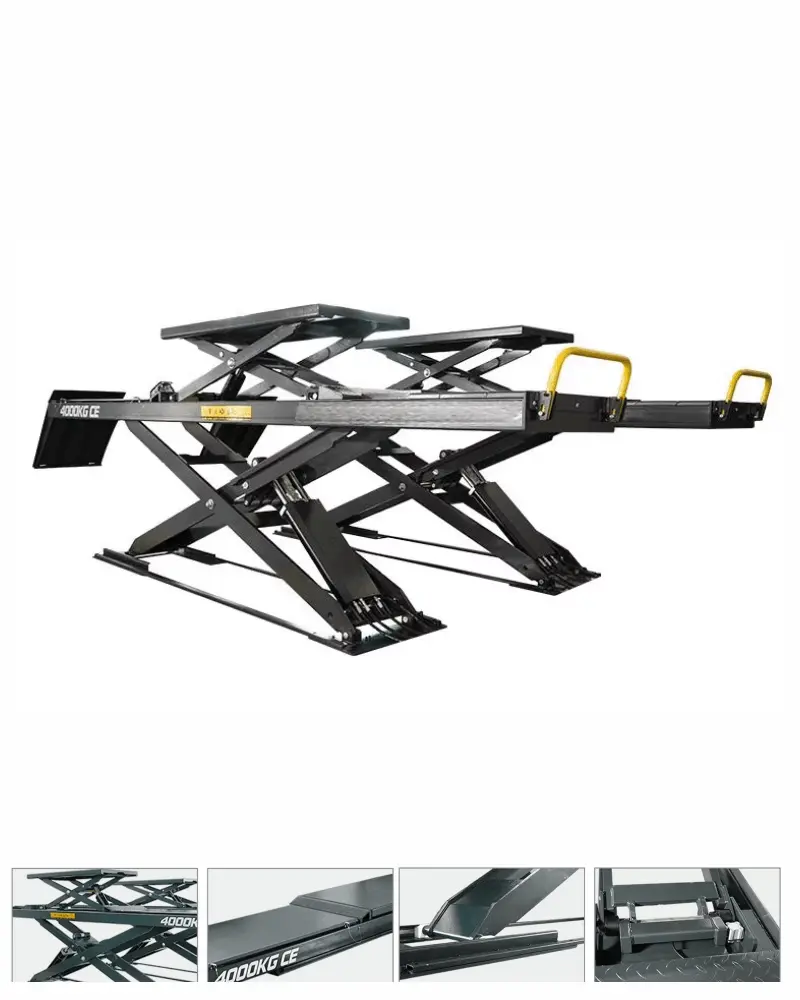

Ultra Thin Large Scissor Car Lift
$190
- Lifting Capacity : 4000Kg
- Lifting Height : 1850mm
- Floor height : 185mm
- Table Width : 630mm
- Table Length : 4500mm
- Motor Power : 2.2Kw
- Power supply : 110V/220V/380V
- Air supply pressure : 0.6-0.8Mpa
- Lifting time : 50s

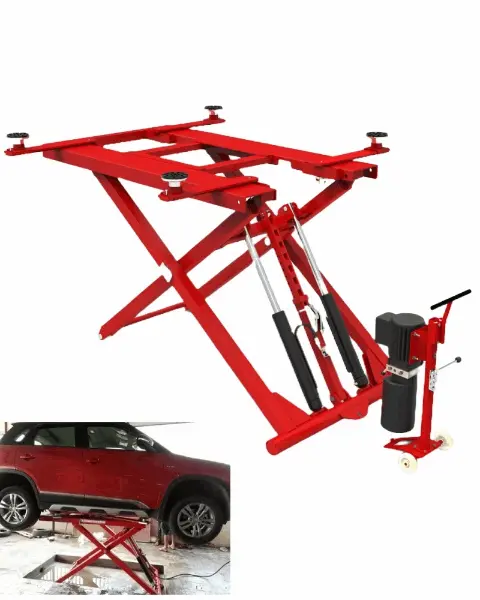

Low Rise Scissor Lift For Washing Bay
$190
Specifications:
Design: Scissor type
Application: Auto maintenance
Material: High-grade steel
- Key Features:
- Platform Length: 1800 mm
- Lifting Time: 45 seconds
- Voltage : 220-240V
- Motor Power: 2.2 KW
- Rated Oil Pressure: 18 Mpa
- Noise Level: ≤ 80 dB
- Warranty: 12 months
- Customization:
- Color: Available as per customer request

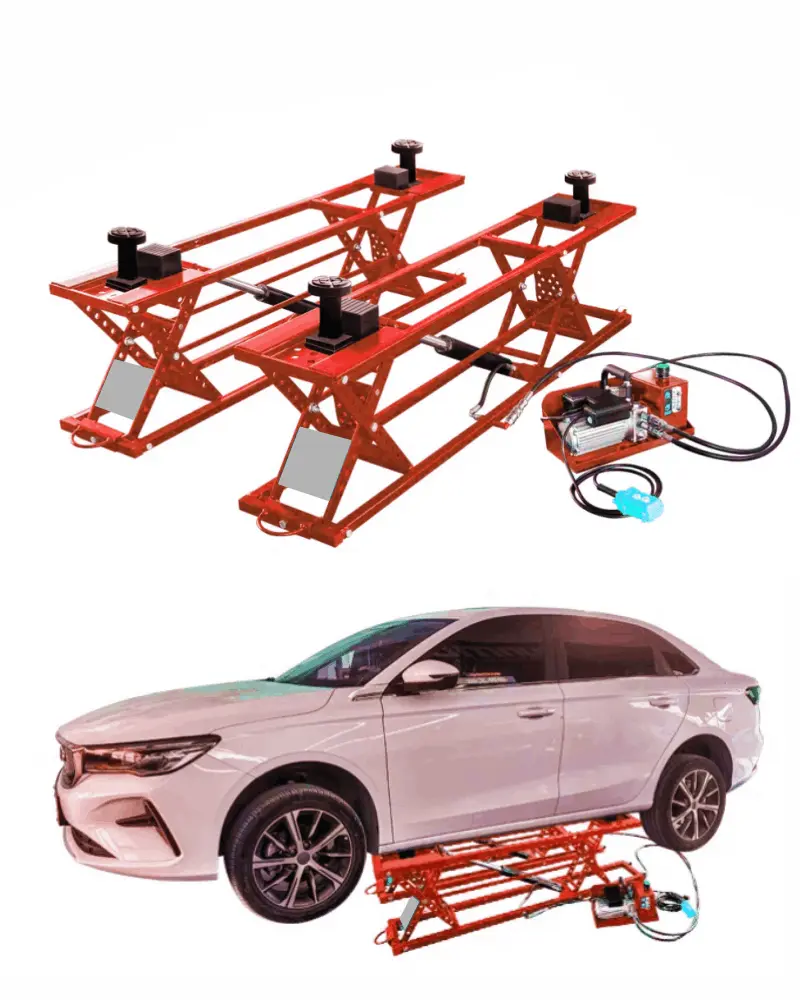

Quick Jack Scissor Portable Car Lift
$190
1. Durable Construction
Made from steel, this lift supports up to 5000 lbs and is ideal for SUVs, and long-wheelbase vehicles on flat surfaces. (Optional: extension plates.)
2. Adjustable HeightFour adjustable columns provide a lift range of 9.06" to 25.6", with pads adding 5.12" to 18.5" for easy vehicle access. (Columns optional.)
3. Safety FirstMechanical safety locks and rubberized lifting pads ensure stability and slip resistance.
4. Easy to Move & StoreHigh-strength pulleys and a foldable design allow effortless mobility and wall storage. (Hooks/nails not included.)
Specification
- Lifting Capaciy : 2280KGS(5,000LBS)
- Lifting Height : 450/470MM
- Min Height : 75MM
- Max Height : 434MM
- Product Size : 1786*278*75MM
- Lifting Size : 1560*278*435MM
- Oil Hose Length : 3M
- Oil Tank Capacity : 2L
- Voltage : 110/220/380V
- Rubber Pad Size : 100*75*55MM(4PCS)
